In-Stock & Ready to Ship
Löwenstein
SKU: LWS.MCH.0024
Löwenstein PrismaCR (AcSV) BiLevel with Humidifier & 4G Modem
$4,099.00
$5,099.00
On
Sale
In-Stock & Ready to Ship
Löwenstein
SKU: LWS.MCH.0024
Löwenstein PrismaCR (AcSV) BiLevel with Humidifier & 4G Modem
$4,099.00
$5,099.00
Don't see your mask listed? Choose "Unsure" and we can get the mask for you.
Choose Mask Type
Product Features
Sensorless intelligent humidification
Fall asleep comfortably – softSTART
Modern connectivity
Pressure relief softPAP
Deep sleep & stability indicators
Precise Event Recognition
softPAP Pressure Relief
Prisma Journal/CLOUD
Multiple Connectivity
Deep Sleep Indicator
Heated Circuit Option
What's in the Box
PrismaCR BiPAP Therapy Device
PrismaBAG Carrying Bag
PrismaHYBERNITE 15mm Flexible Heated Breathing Tube
Power Supply Unit
2x Air Filters

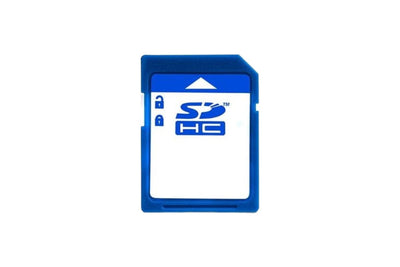

SD Card
PrismaAQUA Humidifier
4G Modem for Prisma CLOUD incl. 5 Years Data Transmission
Main Power Cable
Instructions of use (device & humidifier, multilingual)
Product Specifications
Brand
Löwenstein
What's in the package?
1x prismaCR BiPAP Therapy Device
1x prismaAQUA Humidifier
1x 4G Modem for Prisma CLOUD (includes 5 Years Data Transmission)
1x prismaHYBERNITE 15mm Flexible Heated Breathing Tube
1x Power Supply Unit
1x Main Power Cable
1x prismaBAG Carrying Bag
2x Air Filters
1x SD Card
1x Instructions for use (device & humidifier, multilingual)
1x prismaAQUA Humidifier
1x 4G Modem for Prisma CLOUD (includes 5 Years Data Transmission)
1x prismaHYBERNITE 15mm Flexible Heated Breathing Tube
1x Power Supply Unit
1x Main Power Cable
1x prismaBAG Carrying Bag
2x Air Filters
1x SD Card
1x Instructions for use (device & humidifier, multilingual)
Compatibility
Mask Compatibility: Compatible with a wide range of masks, including Nasal, Nasal Pillow, and Full Face masks. Humidification: Compatible with prismaAQUA humidifier featuring smartAQUAcontrol (sensorless intelligent humidification) and optional heated circuit.
Physical Specification
Dimensions (W x H x D) (Device only) 17 x 13.5 x 18 cm Weight (Device only) 1.4 kg Air Outlet Connection Standard 22 mm tapered connector to ISO 5356-1
Connectivity
4G Modem for telemedicine (prisma CLOUD), SD, PSG, LAN interfaces.
Power Performance
AC Input Voltage 100 V to 240 V AC. DC Operation Requires an optional DC adapter (12 V or 24 V operation).
Sound Level
Approximately 26.5 dB(A) at 10 hPa.
Therapy Modes
AcSV (Anticyclic Servoventilation), CPAP.
Min Pressure
4 hPa.
Max Pressure
30 hPa (in AcSV mode); 20 hPa (in CPAP mode).
Ramp time (softSTART time)
Configurable, up to a maximum of 45 minutes.
EPR (Equivalent)
softPAP (Pressure relief for comfortable expiration).
EPR Level (softPAP level)
Adjustable levels, including Bi soft 1/2 options.
Climate control
smartAQUAcontrol (Intelligent humidification that adjusts to leakage) when using the prismaAQUA humidifier. Supports optional heated circuit.
Humidity Level
Adjustable levels 1-7 are available, with level 4 as the standard setting.
Smart Start/ Auto Start is On or OFF
AutoSTART-STOP function is available and user-selectable. If active, the device starts upon first breath.
Sense Awake (equivalent)
Deep sleep & stability indicators (prisma RECOVER) which analyzes breathing patterns to recognize stable respiration phases that indicate deep sleep.
Warranty
2 years
How To Use
