In-Stock & Ready to Ship
Löwenstein
SKU: LWS.MCH.0026
Löwenstein Prisma 30ST BiLevel with Humidifier & 4G Modem
$5,000.00
$5,600.00
On
Sale
In-Stock & Ready to Ship
Löwenstein
SKU: LWS.MCH.0026
Löwenstein Prisma 30ST BiLevel with Humidifier & 4G Modem
$5,000.00
$5,600.00
Don't see your mask listed? Choose "Unsure" and we can get the mask for you.
Choose Mask Type
Product Features
Auto S/T with Target Volume Control
Wide Pressure Range
Precise Event Recognition
Customisable Target Volume
SCOPES Pre-Sets
Effortless and Consistent Application
Pressure Reaction Fits Patient’s Needs
Pressure Relief softPAP
Sensorless Intelligent Humidification
Fall Asleep Comfortably – softSTART
2 Years Warranty
What's in the Box
Lowenstein prisma30ST BiPAP device

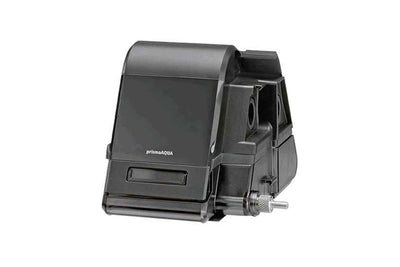

prismaAQUA humidifier
PrismaHYBERNITE 15 mm heated breathing tube

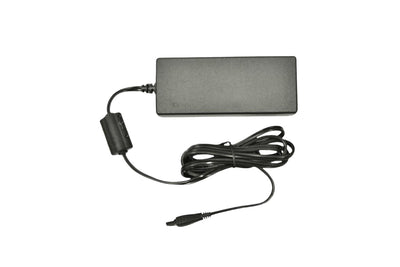

Power supply unit
PrismaBAG carrying bag

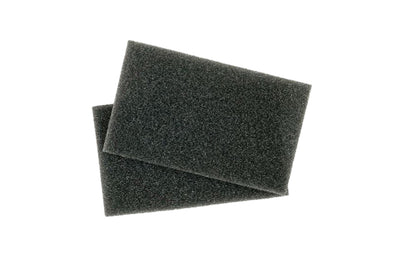

2× air filters
SD card

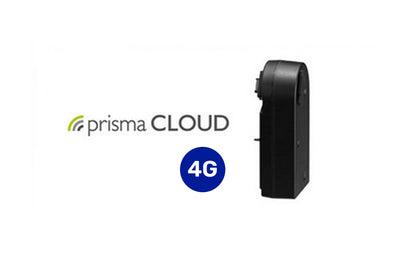

4G modem for prisma CLOUD with 5 years’ data included
Instructions for use (device & humidifier, multilingual)
Product Specifications
Brand
Löwenstein
What's in the package?
1x Lowenstein prisma30ST BiPAP device
1x prismaAQUA humidifier
1x prismaHYBERNITE 15 mm heated breathing tube
1x Power supply unit
1x prismaBAG carrying bag
2x air filters
1x SD card
1x 4G modem for prisma CLOUD with 5 years' data included
1x Instructions for use (device & humidifier, multilingual)
1x prismaAQUA humidifier
1x prismaHYBERNITE 15 mm heated breathing tube
1x Power supply unit
1x prismaBAG carrying bag
2x air filters
1x SD card
1x 4G modem for prisma CLOUD with 5 years' data included
1x Instructions for use (device & humidifier, multilingual)
Compatibility
Mask Compatibility: Full Face, Nasal, and Nasal Pillow masks
Tubing: Supports 15 mm heated breathing tube and 22 mm standard tube
Humidification: Integrated prismaAQUA humidifier with smartAQUAcontrol
Tubing: Supports 15 mm heated breathing tube and 22 mm standard tube
Humidification: Integrated prismaAQUA humidifier with smartAQUAcontrol
Physical Specification
Dimensions (W x H x D): 170 mm x 135 mm x 180 mm Weight: Approximately 1.4 kg Air Outlet Connection: Standard 22 mm tapered connector to ISO 5356-1
Therapy Type
BiLevel-ST with adjustable target volume
Connectivity
prisma JOURNAL, prisma APP, prismaTS, prisma CLOUD (with included modem).
Connectivity: Integrated 4G modem, SD card, LAN interfaces, PSG module (optional)
Telemedicine: prisma CLOUD, prisma APP (Patient support), prismaTS (Therapy software)
Data Storage: High-resolution therapy data for up to 14 days
Statistics: Detailed statistics available for 366 days
Connectivity: Integrated 4G modem, SD card, LAN interfaces, PSG module (optional)
Telemedicine: prisma CLOUD, prisma APP (Patient support), prismaTS (Therapy software)
Data Storage: High-resolution therapy data for up to 14 days
Statistics: Detailed statistics available for 366 days
Comfort Features
BiSoft 1/2, autoPDIFF, autoTriLevel, softSTART
Power Performance
AC Input Voltage: 100 V to 240 V AC, 50-60 Hz DC Operation: Requires optional DC adapter (12 V or 24 V operation) FAA Approved: Yes
Target Volume Range
300–2,000 ml
Sound Level
Approximately 26.5 dB(A) at 10 hPa
Therapy Modes
CPAP, APAP, S, T, S/T, autoS/T, aPCV
Min Pressure
4 cmH2O
Max Pressure
30 cmH2O (BiLevel modes); 20 cmH2O (CPAP/APAP modes)
Ramp time (softSTART time)
Adjustable, gradually increases pressure over a set period (up to 45 minutes)
Start pressure
User-configurable within softSTART function
EPR (Equivalent)
softPAP (Pressure relief in CPAP/autoCPAP)
EPR level (softPAP level)
BiSoft 1/2, autoPDIFF, autoTriLevel
Climate control
smartAQUAcontrol (Intelligent, sensorless humidification)
Smart Start/ Auto Start is On or OFF
AutoSTART-STOP function is available
Sense Awake (equivalent)
prisma RECOVER (Deep sleep and respiratory stability indicators)
Warranty
2 Years
