In-Stock & Ready to Ship
Fisher & Paykel Healthcare
SKU: FAP.MSK.0006

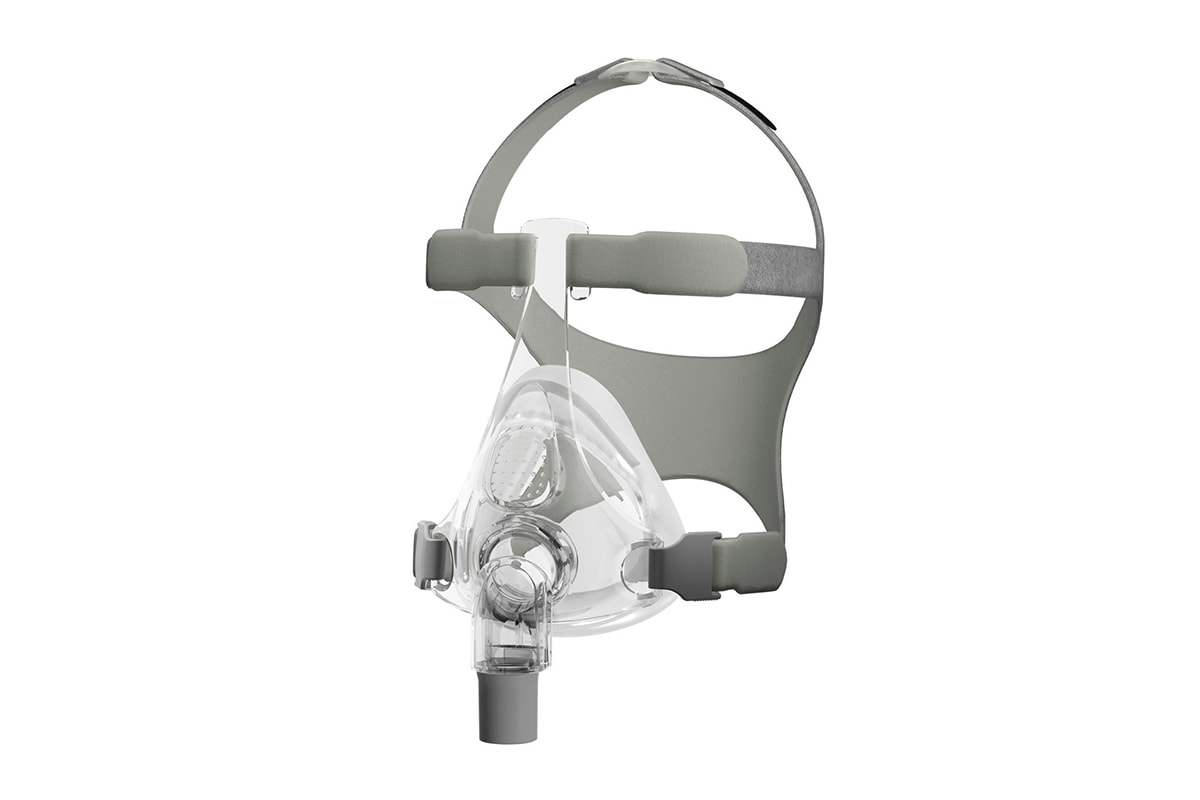

Fisher & Paykel Simplus Full Face Mask
$153.99
$299.00
Authorized Dealer
On
Sale
In-Stock & Ready to Ship
Fisher & Paykel Healthcare
SKU: FAP.MSK.0006
Fisher & Paykel Simplus Full Face Mask
$153.99
$299.00
Choose Mask Type
Features
Easy Frame
ErgoForm Headgear
RollFit Seal
Simply Fits Fast
Simply Cleans
Sizes & Guides
Compatibility
Compatible with all Standard CPAP & BiLevel Machines
Resources & Downloads
Product Specifications
Brand
Fisher & Paykel
What's in the package?

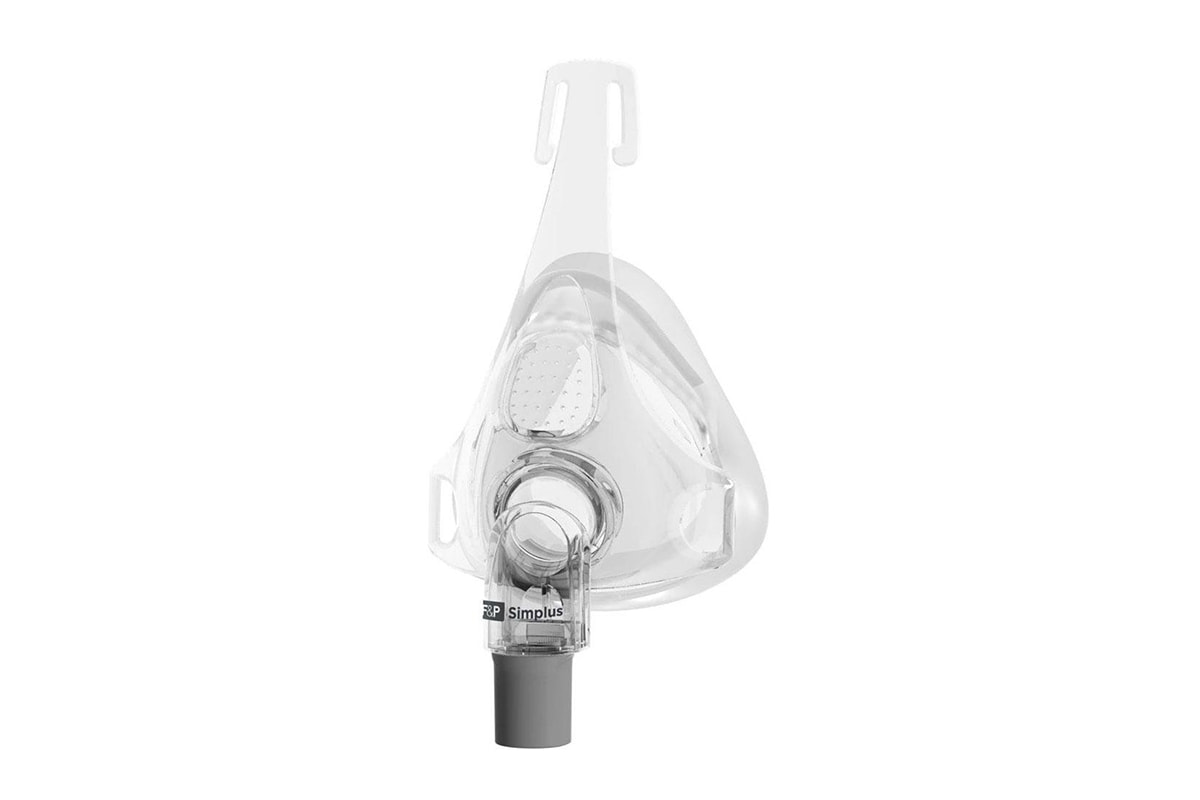

1x Fisher & Paykel Simplus Easy Frame
1x RollFit Seal (Small, Medium, or Large)
1x Swivel
1x RollFit Seal (Small, Medium, or Large)
1x Swivel
Physical Specifications
Mask Dead Space:
Small: 251cc
Medium: 278cc
Large: 310cc
Small: 251cc
Medium: 278cc
Large: 310cc
Performance
Operating pressure range:4 to 25 cmH2 O.
Operating temperature range: 5 to 40 °C (40 to 104 °F).
Inspiratory and expiratory resistance: The inspiratory resistance of the mask (in combination with the Non-Rebreathing Valve) is 0.67 cmH2 O The expiratory resistance of the mask (in combination with the Non-Rebreathing Valve) is 0.12 cmH2 O The opening to atmosphere pressure of the Non-Rebreathing Valve is 0.33 cmH2 O The closing to atmosphere pressure of the Non-Rebreathing Valve is 0.79 cmH2o
Sound Level: The Sound Power Level of the mask is 25.8 dBA, with uncertainty 2.5 dBA. The Sound Pressure Level of the mask is 17.8 dBA, with uncertainty 2.5 dBA.
Operating temperature range: 5 to 40 °C (40 to 104 °F).
Inspiratory and expiratory resistance: The inspiratory resistance of the mask (in combination with the Non-Rebreathing Valve) is 0.67 cmH2 O The expiratory resistance of the mask (in combination with the Non-Rebreathing Valve) is 0.12 cmH2 O The opening to atmosphere pressure of the Non-Rebreathing Valve is 0.33 cmH2 O The closing to atmosphere pressure of the Non-Rebreathing Valve is 0.79 cmH2o
Sound Level: The Sound Power Level of the mask is 25.8 dBA, with uncertainty 2.5 dBA. The Sound Pressure Level of the mask is 17.8 dBA, with uncertainty 2.5 dBA.
Cleaning instructions
Wash the seal and the frame with the tube attached after each use, and every seven days wash the swivel, full headgear, and the tube separately. All components should be hand-washed in lukewarm soapy water for no more than 10 minutes, then rinsed well and left to dry out of direct sunlight before reassembly. Avoid cleaning products that contain alcohol, antibacterial or antiseptic agents, bleach, chlorine, or moisturisers, and never clean the mask in a dishwasher.
Warranty
90 Days
