In-Stock & Ready to Ship
ResMed
SKU: RMD.MSK.0007

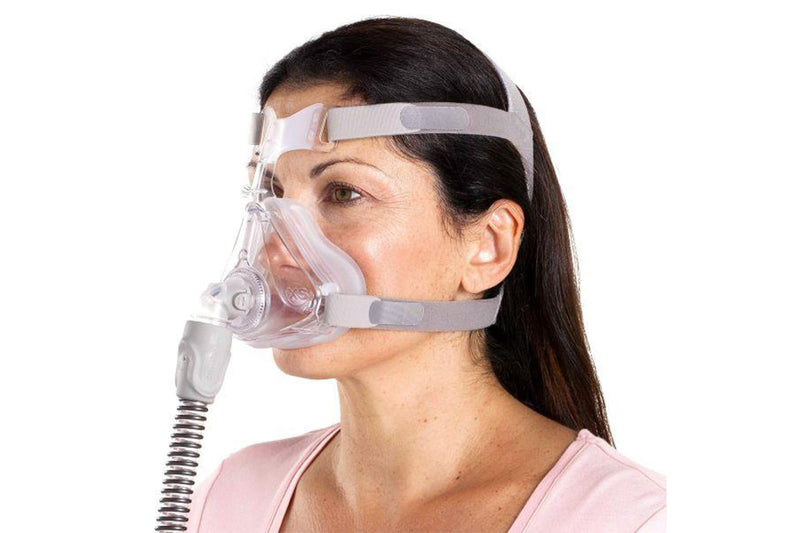

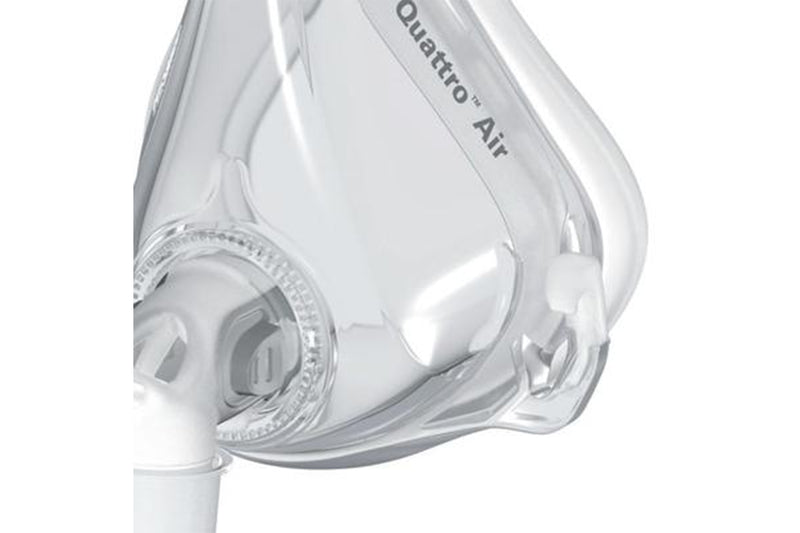

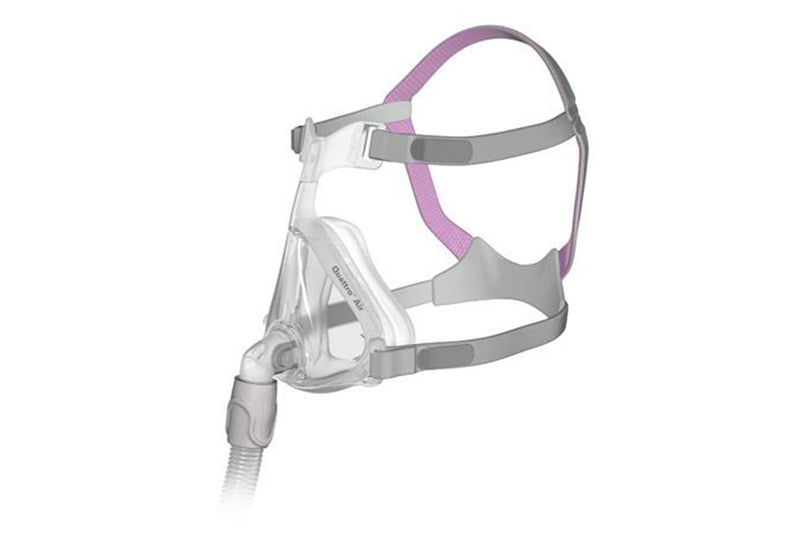

ResMed Quattro Air For Her Full Face CPAP Mask
$168.00
$299.00
Authorized Dealer
On
Sale
In-Stock & Ready to Ship
ResMed
SKU: RMD.MSK.0007
ResMed Quattro Air For Her Full Face CPAP Mask
$168.00
$299.00
Choose an option
Features
Sizes & Guides
Resources & Downloads
What's in the Box
Product Specifications
Brand
ResMed
What's in the package?

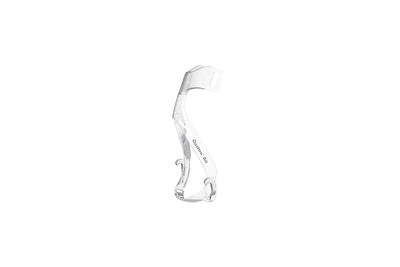

1x Mask frame

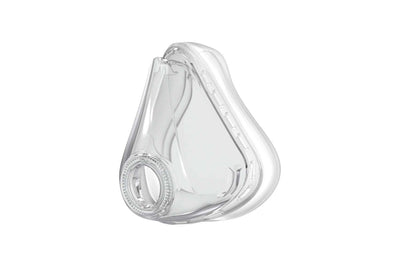

1x Cushion

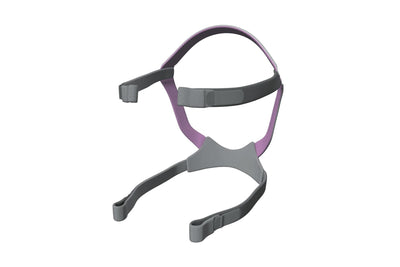

1x Headgear

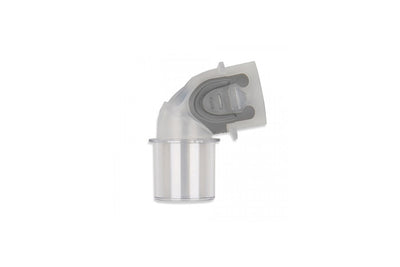

1x Elbow assembly (includes valve and side buttons)
1x Cushion
1x Headgear
1x Elbow assembly (includes valve and side buttons)
Physical Specifications
Extra Small: 5.91" (H) x 4.06" (W) x 4.17" (D) (150 mm (H) x 103 mm (W) x 106 mm (D))
Small: 5.98" (H) x 4.06" (W) x 4.21" (D) (152 mm (H) x 103 mm (W) x 107 mm (D))
Medium: 6.54" (H) x 4.06" (W) x 4.21" (D) (166 mm (H) x 103 mm (W) x 107 mm (D))
Large: 6.77" (H) x 4.06" (W) x 4.21" (D) (172 mm (H) x 103 mm (W) x 107 mm (D))
Physical dead space is the empty volume of the mask to the end of the swivel. Using the large cushions it is 222 mL.
Small: 5.98" (H) x 4.06" (W) x 4.21" (D) (152 mm (H) x 103 mm (W) x 107 mm (D))
Medium: 6.54" (H) x 4.06" (W) x 4.21" (D) (166 mm (H) x 103 mm (W) x 107 mm (D))
Large: 6.77" (H) x 4.06" (W) x 4.21" (D) (172 mm (H) x 103 mm (W) x 107 mm (D))
Physical dead space is the empty volume of the mask to the end of the swivel. Using the large cushions it is 222 mL.
Performance
Therapy Pressure: 4 to 30 cm H₂O.
Resistance at 50 L/min (Inspiration): 0.6 cm H₂O.
Resistance at 50 L/min (Expiration): 1.0 cm H₂O. Anti Asphyxia Valve (AAV) Open-to-atmosphere Pressure: ≤1.6 cm H₂O.
Vent Flow Rate Examples: At 4 cm H₂O, the flow is 22 L/min; at 20 cm H₂O, the flow is 54 L/min.
Resistance at 50 L/min (Inspiration): 0.6 cm H₂O.
Resistance at 50 L/min (Expiration): 1.0 cm H₂O. Anti Asphyxia Valve (AAV) Open-to-atmosphere Pressure: ≤1.6 cm H₂O.
Vent Flow Rate Examples: At 4 cm H₂O, the flow is 22 L/min; at 20 cm H₂O, the flow is 54 L/min.
Cleaning instructions
Daily/After each use: Disassemble the mask components (excluding headgear) and thoroughly clean them by gently rubbing in warm water (approximately 86°F/30°C) using mild soap. Use a soft bristle brush to clean the vent. Rinse well with drinking quality water and allow to air dry out of direct sunlight.
Weekly: Handwash the headgear.
Safety Note: Always follow cleaning instructions and use mild soap, as other products may damage the mask or leave harmful residual vapors.
Weekly: Handwash the headgear.
Safety Note: Always follow cleaning instructions and use mild soap, as other products may damage the mask or leave harmful residual vapors.
Warranty
90 Days
