In-Stock & Ready to Ship
ResMed
SKU: RMD.MSK.0035

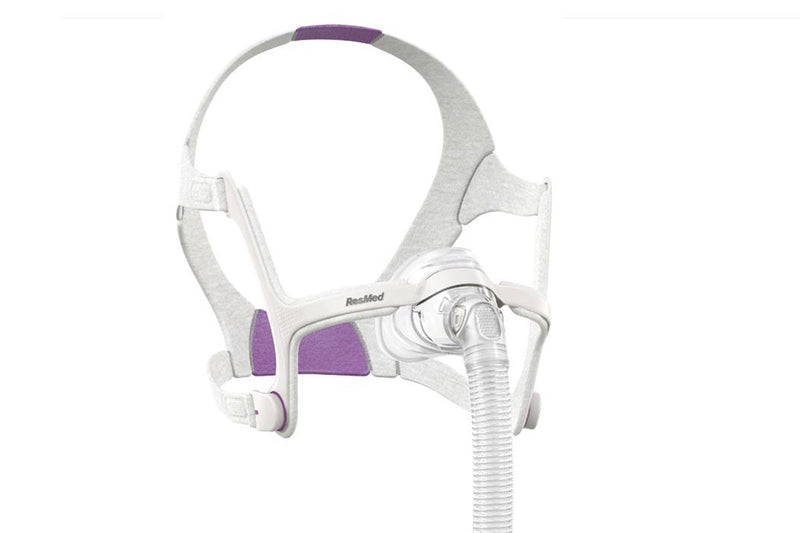

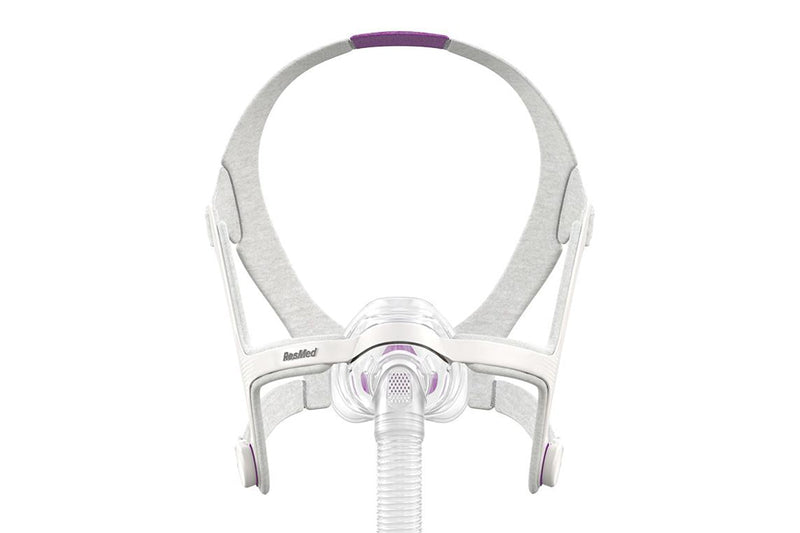

ResMed AirFit N20 For Her Nasal CPAP Mask
$168.00
$275.00
Authorized Dealer
On
Sale
In-Stock & Ready to Ship
ResMed
SKU: RMD.MSK.0035
ResMed AirFit N20 For Her Nasal CPAP Mask
$168.00
$275.00
Choose Mask Type
Features

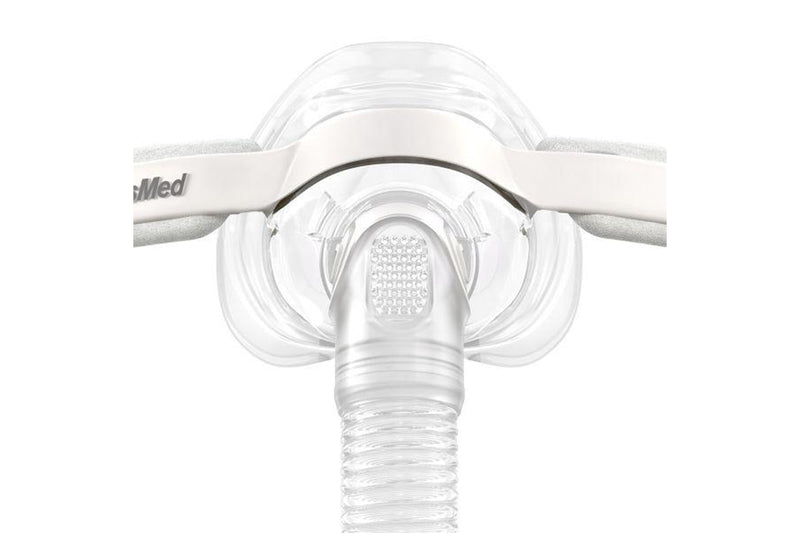

Ultimate Comfort with Infinity Seal
Minimalist, Soft, Flexible Frame with Integrated Padding
Plush Headgear with Magnetic Clips
Easy-to-Use Quick Release Elbow
Integrated Flexi-tube
Resources & Dowloads
What's in the Box
Product Specifications
Brand
ResMed
What's in the package?

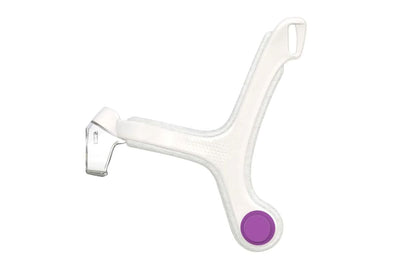

1x Frame

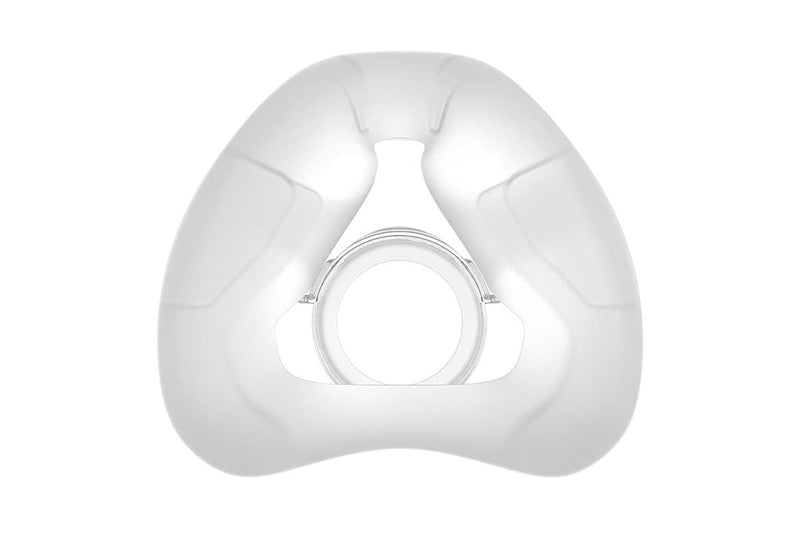

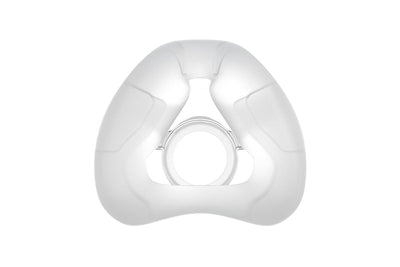

1x Cushion

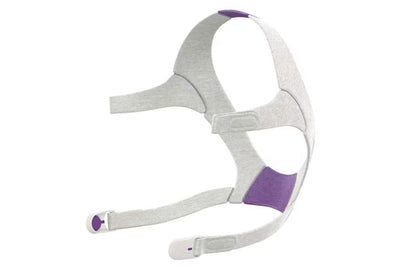

1x Headgear

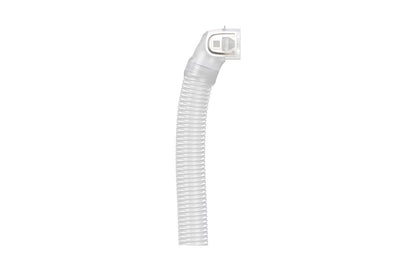

1x Elbow
1x Short tube
1x Swivel

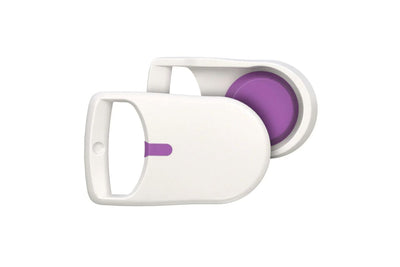

2x Magnetic clips
1x Cushion
1x Headgear
1x Elbow
1x Short tube
1x Swivel
2x Magnetic clips
Physical Specifications
Size (Deadspace/Volume): The empty volume of the mask to the end of the swivel (using the large cushions) is 103.3 mL.
Dimmensions: 13.3" (H) x 11.4" (W) x 6.4" (D) (339 mm (H) x 291 mm (W) x 162 mm (D)) Mask fully assembled with the short tube assembly and swivel, excluding the headgear
Dimmensions: 13.3" (H) x 11.4" (W) x 6.4" (D) (339 mm (H) x 291 mm (W) x 162 mm (D)) Mask fully assembled with the short tube assembly and swivel, excluding the headgear
Performance
Min/Max Pressure: Therapy pressure is 4 to 30 cm H2O.
Sound (in dBA): A-weighted sound power level is 24 dBA (uncertainty of 3 dBA). A-weighted sound pressure level at 1 m is 16 dBA (uncertainty of 3 dBA).
Physical dead space: is the empty volume of the mask to the end of the swivel. Using the large cushions it is 103.3 mL.
Resistance Drop in pressure measured (nominal)
at 50 L/min: 0.3 cm H2O
at 100 L/min: 1.3 cm H2O
Sound (in dBA): A-weighted sound power level is 24 dBA (uncertainty of 3 dBA). A-weighted sound pressure level at 1 m is 16 dBA (uncertainty of 3 dBA).
Physical dead space: is the empty volume of the mask to the end of the swivel. Using the large cushions it is 103.3 mL.
Resistance Drop in pressure measured (nominal)
at 50 L/min: 0.3 cm H2O
at 100 L/min: 1.3 cm H2O
Cleaning instructions
Daily/After each use (Cushion, elbow, and short tube): Soak and agitate in warm water (approx. 86°F/30°C) with mild liquid detergent for up to 10 mins. Clean with a soft bristle brush, paying attention to the vent holes. Rinse thoroughly under warm flowing drinking quality water. Allow to dry out of direct sunlight.
Weekly (Headgear and frame): Soak and agitate the separated headgear and frame in warm water (approx. 86°F/30°C) with mild liquid detergent for up to 10 mins. To rinse, repeatedly squeeze them under warm flowing drinking quality water until free of detergent. Squeeze to remove excess water. Allow to dry out of direct sunlight.
Weekly (Headgear and frame): Soak and agitate the separated headgear and frame in warm water (approx. 86°F/30°C) with mild liquid detergent for up to 10 mins. To rinse, repeatedly squeeze them under warm flowing drinking quality water until free of detergent. Squeeze to remove excess water. Allow to dry out of direct sunlight.
Warranty
90 days
