In-Stock & Ready to Ship
BMC
SKU: BMC.MSK.0034

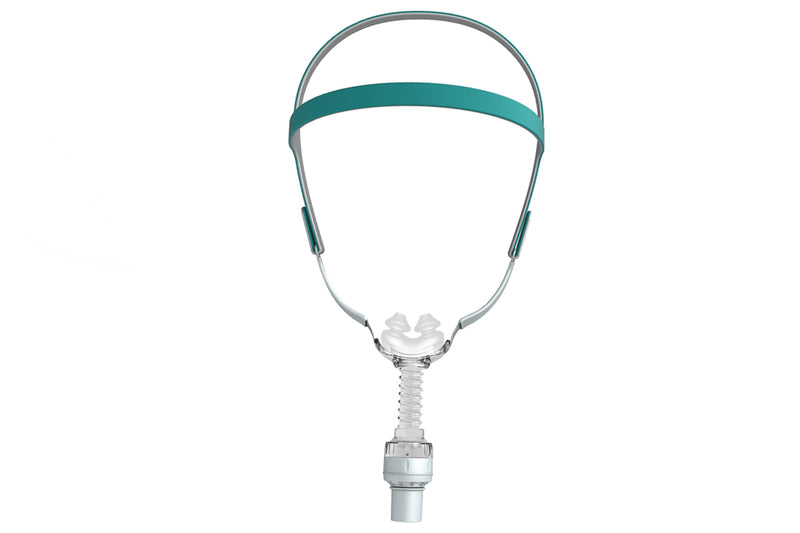

BMC P2H Nasal Pillow mask (Waterless Humidifier For Travel)
$139.00
$142.00
Authorized Dealer
On
Sale
In-Stock & Ready to Ship
BMC
SKU: BMC.MSK.0034
BMC P2H Nasal Pillow mask (Waterless Humidifier For Travel)
$139.00
$142.00
Choose an option
Features
Features
Compatibility
Resource & Downloads
Product Specifications
Brand
BMC
What's in the package?
1x Frame assembly.
1x Short tubing.
1x Headgear (adjustable).
1x Nasal Pillows (includes all 3 sizes of cushions: Small (S), Medium (M), and Large (L)).
2x Humidifier (HU) (for Heat and Moisture Exchange/HME).
2x Adaptor/Connector (one 15mm and one 22mm).
3x Filter.
1x Filter Cover.
1x Short tubing.
1x Headgear (adjustable).
1x Nasal Pillows (includes all 3 sizes of cushions: Small (S), Medium (M), and Large (L)).
2x Humidifier (HU) (for Heat and Moisture Exchange/HME).
2x Adaptor/Connector (one 15mm and one 22mm).
3x Filter.
1x Filter Cover.
Physical Specifications
Materials: The mask interface is certified as Not made with natural rubber latex.
Design/Profile:
Features a lightweight, minimalistic design. Includes an adjustable headgear. The wide-vision design is noted to contribute to convenient reading.
Sizing: The system size is listed as One Size Only (referring to the frame/overall system), but includes S/M/L nasal pillows.
Design/Profile:
Sizing: The system size is listed as One Size Only (referring to the frame/overall system), but includes S/M/L nasal pillows.
Performance
Therapy Pressure 4 to 20 cmH2O.
Resistance Drop in Pressure measured (average for 3 sizes)
at 50 L/min:
Humidifier (HU-Plus) : 0.8 cmH2O Humidifier (HU) : 0.5 cmH2O
at 100 L/min:
Humidifier (HU-Plus) : 2.2 cmH2O Humidifier (HU) : 1.3 cmH2O
Sound sound power level of the Interface 28 dBA, with uncertainty 5 dBA.
A-weighted sound pressure level of the Interface at a distance of 1m 20 dBA, with uncertainty 5 dBA.
Resistance Drop in Pressure measured (average for 3 sizes)
at 50 L/min:
at 100 L/min:
Sound sound power level of the Interface 28 dBA, with uncertainty 5 dBA.
A-weighted sound pressure level of the Interface at a distance of 1m 20 dBA, with uncertainty 5 dBA.
Cleaning instructions
Before cleaning, wash your hands and wash the headgear once before first use to remove any residual dyes. Both the interface and headgear must be cleaned only by hand washing. When cleaning the interface, the short tube, humidifier cover, and frame must remain attached to the frame assembly, as they cannot be disassembled. The humidifier (HU/HU-Plus) should not be washed.
Warranty
90 days
